500×750 Jaw Crusher: A Smarter Alternative to the 600×900 Jaw Crusher

For mining and quarry operators, selecting the right primary crusher is a critical decision that impacts throughput, uptime, and overall project profitability. While the 600×900 jaw crusher is a well-known workhorse in many large-scale operations, the 500×750 jaw crusher has emerged as a highly strategic choice for mid-sized crushing circuits. This article explores why the 500×750 model often outperforms its larger counterpart in terms of total cost of ownership, energy efficiency, and site adaptability, helping you make an informed investment.

What Is a 500×750 Jaw Crusher?

The 500×750 jaw crusher is a medium-sized primary crushing machine with a feed opening of 500 mm × 750 mm (roughly 20×30 inches). It belongs to the PE series of compression crushers that break hard and abrasive rocks by squeezing them between a stationary and a moving jaw plate. Designed for continuous operation in demanding environments like mines, quarries, and recycling plants, this crusher delivers reliable performance with capacities typically ranging from 50 to 150 tons per hour, depending on material properties and CSS (closed side setting).

Unlike larger models such as the 600×900 jaw crusher, which requires a massive foundation and heavy-duty feeders, the 500×750 unit offers a footprint that fits many existing crushing plants without extensive civil works. This makes it a favorite for upgrading brownfield sites or for operators who want to reduce upfront capital expenditure while still achieving robust output.

500×750 vs. 600×900 Jaw Crusher: A Detailed Comparison

Many buyers initially land on the 600×900 jaw crusher because of its fame in high-volume projects. However, when you dig into the specifics, the 500×750 model often presents a better value equation for a wide range of applications.

Feed Opening and Capacity

The 600×900 crusher features a larger feed opening of 600 mm × 900 mm, accepting bigger boulders directly from the blast. This is advantageous when primary breaking is bypassed. Yet in many mines, a hydraulic hammer or a pre-screening process already reduces rock size, making the 500×750’s intake more than sufficient. In fact, for well-blasted material averaging 400 mm or less, the 500×750 crusher yields virtually the same throughput while consuming far less energy.

Power Consumption and Operating Cost

A typical 600×900 jaw crusher is powered by a 75–110 kW motor. The 500×750 model, on the other hand, runs efficiently on a 55–75 kW motor. Over 2,000 operating hours per year, this difference translates into thousands of kilowatt-hours saved—directly lowering your cost per ton. Combined with simpler maintenance and less wear on bearings, the 500×750 offers a markedly lower total cost of ownership.

Installation and Infrastructure

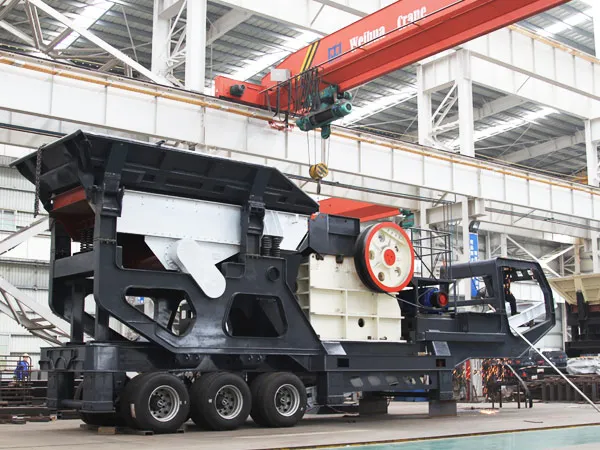

Installation of a 600×900 jaw crusher demands reinforced concrete platforms, heavy cranes, and often extended shutdowns for plant modifications. The 500×750’s lighter weight (typically 12–15 tons vs. 18–22 tons) allows for a modular or semi-mobile configuration. It can be integrated into a closed-circuit portable plant, letting you move the crusher close to the working face and drastically reduce hauling costs.

Wear Parts and Maintenance

Both crushers use manganese steel jaw plates, but the 500×750 unit’s plates are smaller, less expensive, and quicker to change. This means reduced downtime and lower inventory costs for your critical spares. Moreover, its simpler toggle mechanism ensures that daily inspections and grease replenishments are faster, keeping your operation running smoothly.

Key Advantages of the 500×750 Jaw Crusher

• Balanced footprint: ideal for both stationary and mobile configurations, enabling rapid deployment.

• Energy efficiency: lower motor power without sacrificing real-world throughput for feed sizes up to 425 mm.

• Proven reliability: features a robust frame, eccentric shaft of high-grade alloy steel, and labyrinth-sealed bearings extending service life.

• Adjustable CSS: hydraulic or mechanical shims allow quick discharge setting changes from 50–150 mm, producing well-graded aggregates.

• Lower capex: initial purchase price is significantly less than a 600×900 jaw crusher, freeing up capital for secondary crushers or screening equipment.

Applications in Mining and Crushing

The 500×750 jaw crusher excels in primary crushing of medium-hard to hard materials such as:

• Granite, basalt, and limestone quarries

• Iron ore and copper ore processing plants

• River gravel and recycled concrete

• Gold and diamond mine primary circuits

It is particularly suited to operations where blasted rock is moderate in size and the end product feeds a cone crusher or secondary jaw crusher. Compared to the 600×900 jaw crusher, which is often oversized for these tasks, the 500×750 provides a right-sized solution that avoids the inefficiencies of under-loaded crushers (such as uneven jaw plate wear and poor reduction ratios).

Technical Specifications at a Glance

While dimensions may vary slightly by manufacturer, a standard 500×750 jaw crusher offers the following approximate specs:

• Feed opening: 500 mm × 750 mm

• Max feed size: 425 mm (recommended)

• Discharge range (adjustable): 50–150 mm

• Capacity range: 45–110 tph (depending on CSS and material density)

• Main motor: 55 kW (75 hp), 6-pole

• Total weight: ~12.5 tons

• Lubrication: centralized grease system or manual grease points

If your project requires higher tonnage, a 600×900 jaw crusher might be considered, but our experience shows that pairing two 500×750 units or incorporating a grizzly feeder often delivers more flexibility and redundancy than a single large crusher.

How to Maximize ROI with Your 500×750 Jaw Crusher

1. Pre-screen your feed: install a vibrating grizzly before the jaw to remove fines and sand, which reduces unnecessary wear and increases crusher efficiency.

2. Match CSS to downstream: set the closed side setting based on your secondary crusher’s choke feed requirements to prevent recirculation and over-crushing.

3. Regularly rotate jaw plates: when wear becomes visible, swap the stationary and moving plates to maximize their lifespan before replacement.

4. Monitor power draw: a sudden increase in amperage often indicates a clogged toggle area or tramp metal—install a metal detector to protect the crusher.

5. Partner with a single-source supplier: procure your 500×750 jaw crusher and aftermarket parts from a manufacturer that provides on-site support, training, and a warranty.

Why Our 500×750 Jaw Crushers Stand Out

As a specialized manufacturer of mining crushing equipment, we engineer every 500×750 jaw crusher with premium materials and advanced manufacturing techniques. Our units feature:

• Forged eccentric shaft from certified alloy steel

• Labyrinth sealed, dust-proof bearings

• Heat-treated jaw plates with optimized tooth profiles

• Optional PLC-controlled hydraulic CSS adjustment

• Complete batch traceability and ISO 9001 quality management

We understand that while the 600×900 jaw crusher may be the conventional choice for some, each mining operation has unique parameters. Our application engineers will help you select the exact crusher configuration—be it a standalone 500×750 or a customized portable plant—to meet your production goals at the lowest cost per ton.

Conclusion

The 500×750 jaw crusher represents a strategic balance between capacity, investment, and operational expense. For many mid-tier mining and quarry projects, it outperforms the larger 600×900 jaw crusher by delivering more usable product with less waste of energy and capital. By choosing the 500×750 model, you gain a machine that is easier to install, simpler to maintain, and just as tough in hard rock conditions. Whether you’re building a new line or retrofitting an existing plant, this crusher deserves a close look.

Ready to optimize your crushing circuit? Contact our team today for a detailed quote, technical datasheet, or a visit to one of our reference sites running the 500×750 jaw crusher. Let’s crush your production targets—together.
